XIITIA 4pcs RCWL-0516 Motion Detection Sensor, Microwave Radar Sensor, Switch Module, for Arduino, for Human Rat Cat Detector, Detection Distance 5-7m

Price: $7.99
(as of Feb 10, 2024 22:32:20 UTC – Details)

Features:
Wide operating voltage range: 4-28V
Can output 3.3V power supply Blocking time, adjustable distance Using special signal processing control chip RCWL-9196.
Compared with the traditional infrared induction PIR, the penetration detection ability.
The RCWL-0516 Microwave Radar Sensor Module is equipped with Doppler radar technology which is specially designed for detecting objects’ motion. With high anti-jamming capability that it’ll not be affected by wind, heat or other environmental factors.
This motion sensor module can be widely used for human body adaptive forward lighting system, security alarm system and so on.

How to Get Started with a RCWL-0516 Microwave Radar Motion Sensor:
CDS = No connection
VIN = 5vdc (+) (9v battery also Ok)
OUT = 3.3vdc signal out when triggered
GND = 0vdc (-)
3V3 = No connection (in most applications)

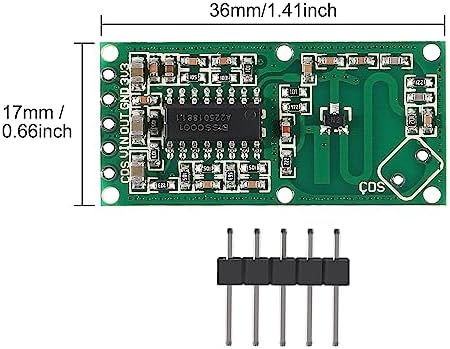

Product Dimensions ‏ : ‎ 0.18 x 0.14 x 0.03 inches; 0.16 Ounces
Item model number ‏ : ‎ others
Date First Available ‏ : ‎ May 26, 2023
Manufacturer ‏ : ‎ XIITIA
ASIN ‏ : ‎ B0C6DCCVXD
Country of Origin ‏ : ‎ China

【Wide Operating Voltage Range】: 4.0-28.0V, output 3.3V power supply.
★RCWL-0516 module has the characteristics of high sensitivity, high induction distance, high reliability, large induction angle, wide power supply voltage range, etc. it is widely used in various kinds of human body induction lighting and alarm and so on.
★RCWL-0516 microwave radar sensor module can detect inert object at the condition that it has enough density, volume and it is in motion.
★Microwave radar sensor will sense motion through most anything. The more shielding there is, the less detection range you get.
★Compatible with Arduino Raspberry PI,Human Rat Cat Detector for nodemcu for wemos etc.; It also can detect human, cat, rat, water.
