Wishiot TF-Luna LiDAR Range Finder Sensor 0.2m-8m Single-Point Ranging Module UART/I2C 5V with 6Pin Terminal to Dupont Cable for Arduino/RPi Pico/Pixhawk/WiFi_Lora_32

Price: $26.99
(as of Mar 04, 2024 19:32:02 UTC – Details)

1, Model: TF-Luna, Operating range: 0.2-8m, Distance resolution: 1cm, Power comsumption: not over 0.35W, Frame rate: 1-250Hz, Frequency: 100Hz, FOV: 2 degree, Net weight: not over 5g, Communication: UART/I2C interface, Power supply: 5V. Compatible with Raspberry Pi Pico, Pixhawk and WiFi_Lora_32 0.96″ oled display transceiver module.
2, TF-Luna is a single-point ranging LiDAR, based on TOF principle. It is built with algorithms adapted to various application environments and adopts multiple adjustable configurations and parameters so as to offer excellent distance measurement performances in complex application fields and scenarios.

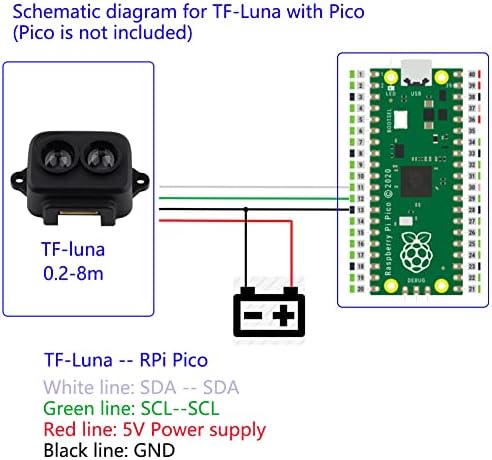

3, TF-Luna module comes with UART and I2C interface, default communication interface is UART, IIC can be realized by wiring pins, if you need to use I2C interface, please set it yourself. There are 3pcs cables comes with the lidar, 1.25mm-6Pin male to male connector wire, 1.25mm-6Pin male connector to male/female dupont cables, covers the cables for most scenarios, makes it easy and convenient for your connections.
4, TF-Luna Lidar is very light, very suitable for scenarios with strict load requirements. Main Applications: Short distance obstacle avoidance, Auxiliany focus, Elevator projection, Intrusion detection, Level measurement etc.
5, What you will get is: 1pc TF-Luna LiDAR Range finder sensor module, 1pc 1.25mm-6Pin male to male connector wire, 1pc 1.25mm-6Pin male connector to male dupont cable, and 1pc 1.25mm-6Pin male connector to female dupont cable. If you have any question, please contact us by click “WISHIOT” under the shopping cart and click “Ask a question” in the new page
