WayPonDEV L1RM 4D 3D Lidar Sensor 360 Degree 30 Meters Scanning Ranging Module Kit, ROS SLAM LIDAR Sensor Scanner for AGV Robot Navigation and Obstacle Avoidance (L1RM 30M)

Price: $429.00
(as of Apr 06, 2024 00:37:55 UTC – Details)

Product Description

L1RM 4D Lidar Sensor

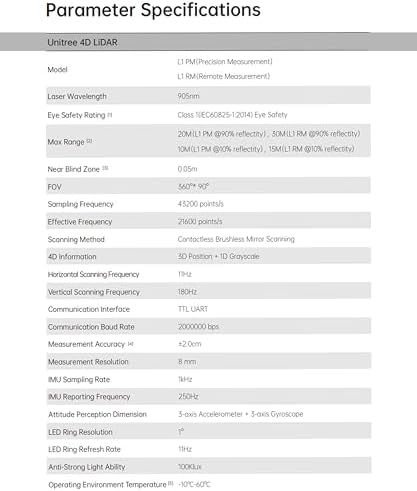

FOV: 360° × 90°Non-duplicate scan: YesScanning method: non-contact brushless mirror scanningScanning distance: 30mSampling frequency: 43200 points/secondEffective frequency: 21600 points/secondCircumferential scanning frequency: 11HzVertical scanning frequency: 180HzCommunication interface: TTL UART4D data: 3D position + 1D grayscaleAnti-glare ability: above 100KluxNear blind zone: 0.05m

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

5.0 out of 5 stars
2

—

5.0 out of 5 stars
1

—

—

—

Price

$549.00$549.00

$449.00$449.00

$299.00$299.00

$469.00$469.00

$699.00$699.00

$349.00$349.00

Measuring Range
0.05-40 meters 0.05-30 meters 0.05-18 meters 0.05-50 meters 0.1-40 meters 0.05-20 meters

Sampling Frequency
32KHz 32KHz 32KHz 32KHz 9200Hz 43200 points/second

Angular Range
360° 360° 360° 360° 360° 360° x 90°

Size
55.6 x 55.6 x 41.3 mm 77 x 77 x 38.85 mm 77 x 77 x 38.85 mm 77 x 77 x 38.85 mm 77.1 x 57 x 74.9 mm 75 × 75 × 65 mm

Scenarios
Indoor/Outdoor Indoor/Outdoor Indoor/Outdoor Indoor/Outdoor Indoor/Outdoor Indoor/Outdoor

Communication interface
TTL UART Ethernet UDP（10/100M） TTL UART TTL UART Ethernet and Wifi TTL UART

L1RM 4D Lidar Sensor Support Whole House Dynamic Scanning

L1 4D lidar can quickly and accurately obtain the three-dimensional structural information of the whole house, which facilitates the positioning and autonomous navigation of mobile robots, and can help the robot expand richer functions such as whole-house cleaning and organization.

L1RM 4D Lidar Sensor Support Non-repetitive Scanning

L1 3D lidar has an ultra-low blind zone and a minimum detection distance of 0.05m, making it easy to achieve close range detection and recognition. It also supports non-repetitive static scanning. Through omnidirectional ultra-wide-angle non-repetitive scanning, high-precision point cloud data can be obtained to achieve image-level scanning effects.

L1RM 4D Lidar Sensor with Excellent Performance

L1 4D lidar has built-in 3-axis acceleration and 3-axis gyroscope IMU modules, supporting a push frequency of 250Hz. The circumferential scanning frequency of L1 is 11Hz, the vertical scanning frequency is 180Hz, and the effective sampling frequency is 21600 points/ Second. L1 not only has excellent performance, but also has high reliability. It can also achieve stable ranging and high-precision mapping under the strong light of 100K lux outdoors.

L1RM 4D Lidar Sensor Support Ultra-wide-angle

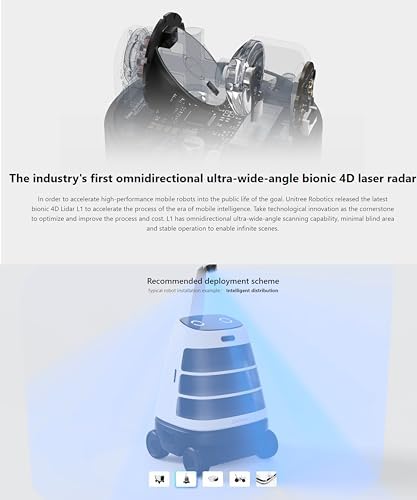

L1 lidar has excellent ultra-wide-angle scanning capabilities. The field of view (FOV) extends to 360° horizontally and 90° vertically. It can realize three-dimensional space detection with a hemispherical field of view, and its application range can be expanded to More commercial scenarios.

L1RM 4D Lidar Sensor with Wide range of Application Scenarios

Application Scenarios

Logistics and WarehousingIntelligent DistributionSweeping RobotIntelligent Industry and AgricultureSmart FactoryEnvironment ScanningSmart Toys, Logistics and Other field

[Excellent Performance] L1RM 4D lidar has built-in 3-axis acceleration and 3-axis gyroscope IMU modules, supporting a push frequency of 250Hz. The circumferential scanning frequency of L1 is 11Hz, the vertical scanning frequency is 180Hz, and the effective sampling frequency is 21600 points/ Second. L1 not only has excellent performance, but also has high reliability. It can also achieve stable ranging and high-precision mapping under the strong light of 100K lux outdoors.
[3D Space Detection] L1RM lidar sensor scanner has excellent ultra-wide-angle scanning capabilities. The field of view (FOV) extends to 360° horizontally and 90° vertically. It can realize three-dimensional space detection with a hemispherical field of view, and its application range can be expanded to More commercial scenarios.
[High-speed Ranging Sampling] L1RM 4D-LiDAR is a 4D lidar rangefinder module(3D position + 1D grayscale), which can be widely used in robots, smart cities, smart toys, logistics and other fields, supporting mapping, positioning, identification, avoidance Implementation of functions such as obstacle, environment scanning, and 3D reconstruction.
[Whole House Dynamic Scanning] L1RM 4D 3D lidar scanner can quickly and accurately obtain the three-dimensional structural information of the whole house, which facilitates the positioning and autonomous navigation of mobile robots, and can help the robot expand richer functions such as whole-house cleaning and organization.
[Ultra-low Blind Zone] L1RM 4D lidar sensor has an ultra-low blind zone and a minimum detection distance of 0.05m, making it easy to achieve close range detection and recognition. It also supports non-repetitive static scanning. Through omnidirectional ultra-wide-angle non-repetitive scanning, high-precision point cloud data can be obtained to achieve image-level scanning effects.
[SDK Document] SDK download: “https://www.unitree.com/download”; All technical and after-sales questions, please click “WayPonDEV” store and ask the question or leave the message to “wpd#youyeetoo&com (#—>@,&—>.)” .
